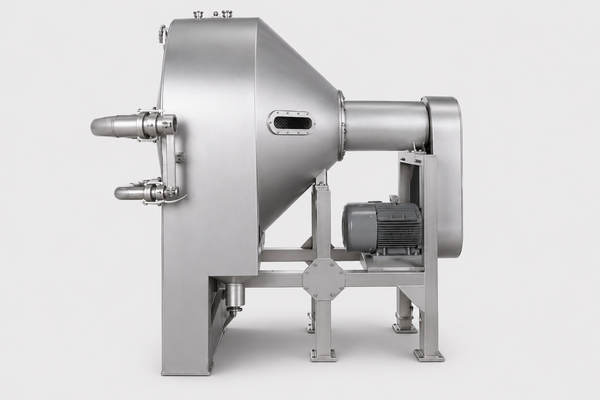

Centrifugal Sieve
≥99% Fiber Removal · CIP-Ready Skid Design · Extended Screen Life
The CS Series Centrifugal Sieve is a high-performance separation device designed specifically for the starch industry. It utilizes advanced centrifugal force to efficiently separate fine fiber from starch slurry. Featuring a fully integrated, skid-mounted design, the CS Series combines operational stability with superior extraction yields, making it an essential component for modern starch processing lines.
Key Features:
- Integrated Modular Design: The main unit, pumps, and CIP system are all pre-installed on a robust stainless steel skid (base frame). This "plug-and-play" design allows for rapid on-site installation and easy relocation.
- Optimized Feeding System: Features an adjustable feed mechanism that creates a homogeneous material layer across the sieve surface. This ensures uniform separation, minimizes vibration, and significantly extends the equipment's service life.
- Precision Laser-Drilled Screens: Equipped with high-quality stainless steel sieve plates featuring laser-drilled apertures. This guarantees a high passing rate, prevents clogging, and allows for easy cleaning.
- Advanced Washing System: A professionally designed nozzle arrangement provides precise water injection pressure and coverage, effectively washing the starch granules from the fiber mesh to maximize extraction yield.
- Superior Bearing Protection: The drive system incorporates a specialized ring seal structure that guarantees 100% isolation between the process water/material and the bearing housing, preventing contamination and failure.
- Premium Components: Built for reliability with top-tier global
components:
- • Bearings: SKF (Sweden)
- • Belts: Optibelt (Germany)
- • Motors: Siemens (Germany) or top-tier domestic equivalents.
- Fully Integrated CIP: Includes a complete Clean-In-Place (CIP) system with piping, automatic valves, and filters for hygienic and automated maintenance.
- Complete Fluid Handling: Comes equipped with dedicated fiber pumps and defoaming pumps, ensuring reliable material transport and handling of foamy slurries.
| Model | Capacity (t/h) | Power (kW) | Screen Area (m2) | Weight (kg) |
|---|---|---|---|---|
| CS-800 | 3-8 | 11 | 1.5 | 1,200 |
| CS-1000 | 8-15 | 18.5 | 2.5 | 1,800 |
| CS-1200 | 15-25 | 30 | 3.8 | 2,500 |
Part of a Complete Processing Line
This unit integrates with our complete starch processing systems. View the full line or request a custom process flow tailored to your raw material and capacity.
